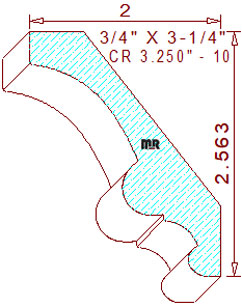

The elegant profile is comprised of a two tangent radius cove in the center, attached to a 23/64" tall vertical line at the top. The lower portion of the design consists of a 5/8" wide half round circle connected to a small vertical fillet, joined to a 3/8" radius cove with a 7/32" radius half round circle at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-9/16" tall, with a projection of 2" wide.
Please read our commentary about axial constant position for crown moulding bevels, the article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the machinery is axially calibrated.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
