Crown 4-17/32" - 1

Crown 4-17/32" - 1

Crown 4-17/32" - 1

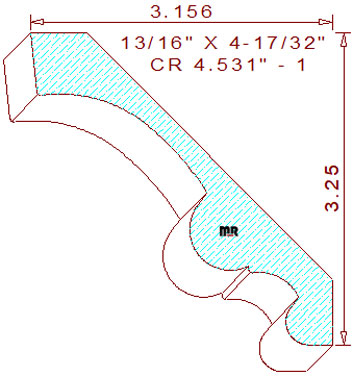

This fancy 4-17/32" - 1 crown mould measures 4.531" wide by .812" thickness, enabling the pattern to be milled from four-quarter lumber. The terminating profile is comprised of a 21/32" tall, slightly tapered line on top, connected to a two tangent radius concave arc that joins to a thumbnail shaped half circle, attached to a small vertical line segment and a 29/64" cove with another smaller thumbnail shaped bead at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-1/4" tall with a projection of 3-5/32" wide.

We offer a small family of similar designs in different sizes for your review and consideration, crown 3.250" - 10, crown 4.625" - 9, crown 4.562" - 2, crown 4.625" - 10 and crown 6.500" - 3.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.481
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.420
Top Cutter Head
Width: 4.531
Depth of Cut: 0.595
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$307.05
Not Needed
Total:
$587.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$328.17
Not Needed
Total:
$627.67
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$349.30
Not Needed
Total:
$667.80
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
