Crown Moulding 4" - 22

Crown Moulding 4" - 22

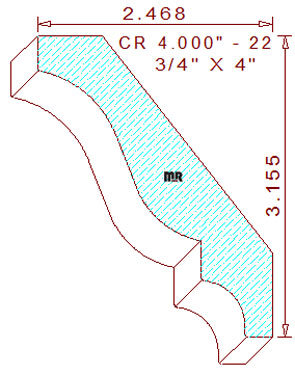

This Traditional Crown Moulding 4" - 22 measures 4.000" wide by .750" thickness, with a .276" depth of cut on the top horizontal set of knives. We have a few other similar profiles with different heights and projections you may want to review and consider, crown moulding 4.000" - 46, crown 4.000" - 25, crown 4.000" - 41, crown 4.000", crown 4.000" - 48, and crown 4.000" - 52.

The common profile is comprised of a cyma recta in the center, flanked by 3/8" tall vertical fillets, with a 3/8" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, search our bevels category by these degrees to find two sets of back bevel cutters appropriate for this crown/cove moulding design, these specific back bevels set the installed height at 3-5/32" tall with a projection of 2-15/32" wide. Three high points in the detail were purposely positioned on the same level plane, this creative design feature will assure excellent hold down conditions while milling the detail on an industrial moulder providing the moulder pressure shoe is calibrated.

Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on moulding knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
