Crown 4" - 52
Crown 4" - 52

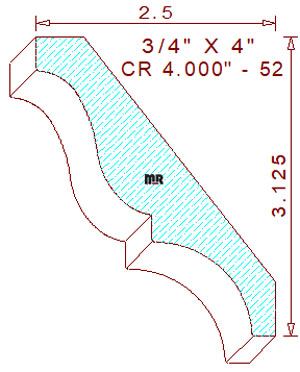

This classic 4" - 52 crown mould measures 4.000" wide by .750" thickness. The time-honored profile is comprised of three tangent radius arcs creating a cyma recta in the center, flanked by a 23/64" tall vertical fillet on the top, and a 9/32", vertical line below, connected to a 1" radius cove with a 1/4" broad line at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-1/8" tall with a projection of 2-1/2" wideWe have a few other similar profiles with different heights and projections you may want to review and consider, crown 4.000" - 22,crown 4.000" - 25, crown 4.000" - 41, crown 4.000", and crown 4.000" - 48.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.395
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.350
Top Cutter Head
Width: 4.000
Depth of Cut: 0.493
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$290.00
Not Needed
Total:
$558.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$309.00
Not Needed
Total:
$591.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$337.50
Not Needed
Total:
$640.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
