Crown Moulding 4-3/4" - 2

Crown Moulding 4-3/4" - 2

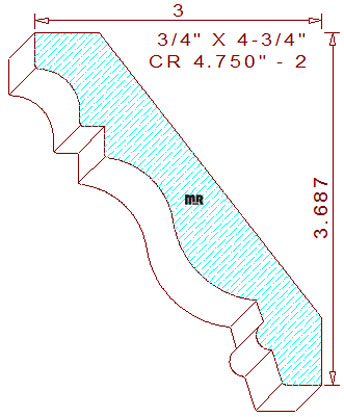

This stylish crown moulding 4-3/4" - 2 measures 4.750" wide by .750" thickness. The custom profile is comprised of a 3/8" tall vertical line joined a 7/16" radius cove with a notched fillet in the upper portion, joined to a two tangent radius cyma recta in the center, with a half round bead flanked by angled lines at the bottom of the design. We have many patterns in this same style in different widths and thicknesses for your review and consideration, here are just a few to look at crown molding 4.750", crown 4.750" - 5, crown 5.750" - 16, just alter the search parameters to view other width size options.

The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-11/16" tall with a projection of 3" wide. Three high points in the detail were deliberately positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.750" / Depth of Cut = .409" (top knives).

Thickness = .750" / Depth of Cut = .414" (right blades) & .556" (left cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
