Crown Moulding 5-1/2" - 44

Crown Moulding 5-1/2" - 44

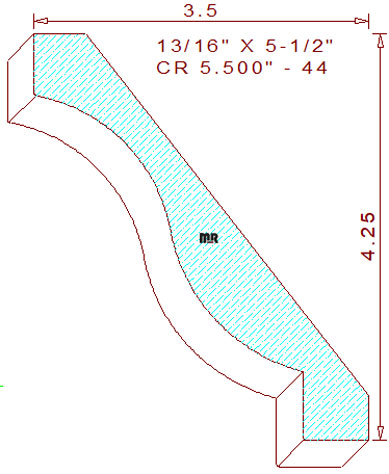

This 5-1/2" Cyma Recta Crown Moulding - 44 measures 5.500" wide by .812" thickness with a depth of cut of .332" on the right vertical profile cutters, a .369" depth of cut on the left set of knives, and a .625" depth of cut on the top horizontal moulding blades. We have a substantial group of similar style profiles with different widths, heights and projections, here are just a few sizes you may want to review and consider for your woodworking project, crown moulding 1.500" - 9, crown 2.000" - 6, crown 2.500" - 1, crown 3.000" - 19, crown 4.000" - 1, crown 7.000" - 3, and crown 8.500".

The medium sized profile is comprised of a 1-7/8" radius arc tangent off of a 1-3/4" radius curve creating a free flowing cyma recta in the center, connected to a 41/64" tall vertical line at the top. The lower portion of the design consists of a 23/32" tall vertical line, attached to a 11/16" wide horizontal line generating a squared fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 4-1/4" tall, with a projection of 3-1/2" wide. Two high points in the design were intentionally positioned on the same plane, our skilled design features will guarantee excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the moulder bed plates.

We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding knife dxf profiles, see how easy the services we provide can increase productivity while reducing manufacturing cost.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
