Fluted Moulding 3" - 10

Fluted Moulding 3" - 10

Fluted Moulding 3" - 10

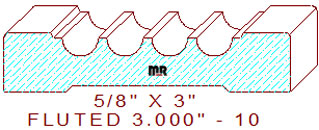

This midsize fluted casing moulding 3" - 10 measures 3.000" wide by .625" thickness. The symmetrical profile is composed of two 31/64" wide horizontal lines with 1/16" eased outer edges and chamfered lines on the inside, joined to four 3/8" wide half round semicircles flanked by 3/32" wide line segments. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs. We offer many similar profiles in different widths, here are just a few for your review and consideration, fluted casing 3.000" - 2, fluted 3.500" - 3, fluted 4.000" - 5 and fluted 6.000" - 3.

Thinking about building an enclosed tool room for the profile knife grinder, template making machine and a place to store all your moulding templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, this small simple task can save you thousands of dollars in repair cost from not securing the table bearings before moving.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .249" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
