Fluted Moulding 4" - 5

Fluted Moulding 4" - 5

Fluted Moulding 4" - 5

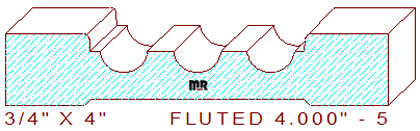

This decorative fluted casing moulding 4" - 5 measures 4.000" wide by .750" thickness. The beautiful symmetrical profile consists of 7/8" wide by 3/16" stepped lines with a 1/16" inner radius edge on each side of the pattern, the middle of the design is composed of three 1/2" wide by 7/32" deep semicircles divided by two 9/32" and a 7/64" wide line segments in the center of the pattern. We offer many similar profiles in different widths, here are just a few for your review and consideration, fluted casing 3.000" - 2, fluted 3.000" - 10, fluted 3.500" - 3 and fluted 6.000" - 3. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Ever wonder why certain species of lumber have tear out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save a substantial amount of money when investing in this style of moulder tooling.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .403" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
