Fluted Moulding 3-1/2" - 3

Fluted Moulding 3-1/2" - 3

Fluted Moulding 3-1/2" - 3

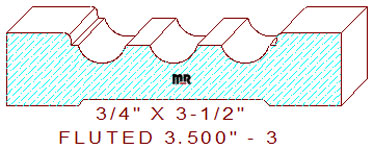

This custom fluted casing moulding 3-1/2" - 3 measures 3.500" wide by .750" thickness, allowing the pattern to be milled from four quarter lumber. The designer profile is composed of a three recessed 1/2" wide by 3/16" deep flutes divided by 1/4" wide line segments in the middle, each side retains a 43/64" wide straight line with a 1/16" eased edge that transitions into a 5/64" wide by 1/8" deep notch that joins to the concave semicircles in the center. The side edges were intentionally left square to utilize one of our many radius edges we have to offer, here's one we think matches nicely with this pattern, radius .062". We offer many similar profiles in different widths, here are just a few for your review and consideration, fluted casing 3.000" - 2, fluted 3.000" - 10, fluted 4.000" - 5 and fluted 6.000" - 3.

Do you realize how important proper tool balance is to your current molding operation? Find out more on how critical it is to have perfectly balanced knives, screws, gibs in the cutter head, and the problems they create if you neglect to focus on these simple task. Protect your current investment of woodworking machinery, your clients will appreciate your disciplined approach in molding manufacturing.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .313" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
