Fluted Moulding 3" - 2

Fluted Moulding 3" - 2

Fluted Moulding 3" - 2

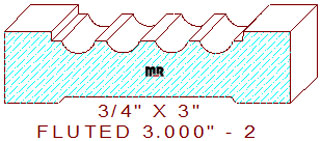

This recessed fluted casing moulding 3" - 2 measures 3.000" wide by .750" thickness, enabling the pattern to be milled from four quarter lumber. The custom profile is composed of four sunken 11/32" wide by 1/8" deep flutes divided by 5/32" wide line segments in the middle, each side of the pattern retains a 1/2" wide straight line that transitions into a 3/32" wide by 3/32" deep notch that joins to the concave semicircles in the center. The side edges were intentionally left square to utilize one of our many radius edges we have to offer, here's one we think matches nicely with this pattern, radius .062". We offer many similar profiles in different widths, here are just a few for your review and consideration, fluted casing 3.000" - 10, fluted 3.500" - 3, fluted 4.000" - 5 and fluted 6.000" - 3.

Whether you have a Weinig R 1000 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind, to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .228" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
