Fluted Casing Moulding 6" - 3

Fluted Casing Moulding 6" - 3

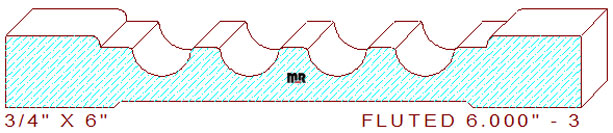

This large fluted casing moulding 6" - 3 measures 6.000" wide by .750"thickness, enabling the pattern to be milled from four quarter lumber. The wide profile is composed of four recessed 5/8" wide by 19/64" deep flutes divided by three 5/16" wide line segments in the middle, each side retains a 63/64" wide straight line with a 3/32" eased inner edge, connected to a 11/32" wide straight line that merges into the concave semicircles in the center. The side edges were intentionally left square to utilize one of our many radius edges we have to offer, here's one we think matches nicely with this pattern, radius .125". We offer many similar profiles in different widths, here are just a few for your review and consideration, fluted casing 3.000" - 2, fluted 3.000" - 10, fluted 3.500" - 3 and fluted 4.000" - 5.

Learn how to become more efficient while searching over 15,000 mouldings in our state of the art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.000" / Depth of Cut = .423" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
