Base Moulding 6" - 101

Base Moulding 6" - 101

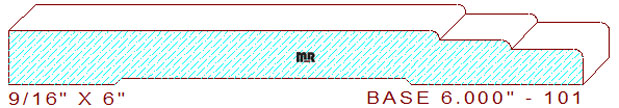

This stepped base moulding 6" - 101 measures 6.000" wide by .562" thickness. The profile is comprised of a 4-1/2" wide by 3/32" deep radius edge fillet that transitions into two 3/4" wide by 3/32" deep eased edge steps in the upper portion of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs. We offer a whole family of these type of stepped designs in the same width for your review and consideration, baseboard 6.000" - 9, 44, 47, 54, 69, 85, 110 and base molding 6.000" - 144.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this tiered baseboard detail, one for the entire width of the pattern and the other for just the profile portion of the design. Search by width for one of our fancy base shoe for the bottom of the profile. Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this helpful resource will help customers locate your millwork shop.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .436" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
