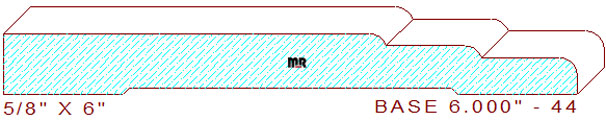

This three tier base moulding
6" -44 measures 6.000" wide by .625" thickness. The elevation changing profile is comprised of a 4" wide horizontal line with a 1/8" radius drop, connected to a 1" wide by 1/8" deep radius step in the center, joined to a 1" wide line segment also with a 1/8" eased edge leaving a 1/2" thickness dimension at the top of the design. A casing molding
could also be made from the same knife pattern by simply raising the top cutter head radially to any desired thickness, and mill a 1/8" radius
on the left vertical cutter head on the molder. We offer a small cluster of these type of stepped designs in the same width for your review and consideration, baseboard 6.000" - 9, 47, 54, 69, 85, 101, 110,
and base molding 6.000" - 144.
Need some supplies for your moulder? Choose any of our quality high speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your moulder and tool grinding room.
For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.
Width = 6.000" / Depth of Cut = .563" (top knives) & .063" (bottom cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
