Mirror Reflections provides the cut steel size on all our molding template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production.
For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

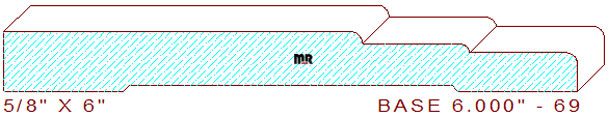

Width = 6.000" / Depth of Cut = .467" (top knives) & .062" (bottom cutters.)
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
