Crown 4-9/16" - 2

Crown 4-9/16" - 2

Crown 4-9/16" - 2

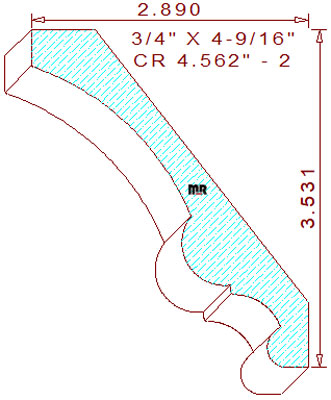

This prominent 4-9/16" - 2 crown mould measures 4.562" wide by .687" thickness, enabling the pattern to be machined from four-quarter lumber. The elegant design will embellish the architectural decor on any home or office; it is composed of a 25/64" vertical line on top, connected to a 2-49/64" cove and a 47/64" tall half circle with a 3/32" tall line segment in the center, joined with a 33/64" cove and a 7/16" tall half round bead in the lower portion of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-17/32" tall with a projection of 2-57/64" wide.

We offer a small cluster of similar pattern in many different sizes for your review and consideration, crown 3.250" - 10, crown 4.625" - 9, crown 4.531" - 1, crown 4.625" - 10 and crown 6.500" - 3.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.510
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.420
Top Cutter Head
Width: 4.562
Depth of Cut: 0.455
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$308.60
Not Needed
Total:
$632.10
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$329.85
Not Needed
Total:
$672.35
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$351.10
Not Needed
Total:
$712.60
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
