Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Crown 8-1/2" - 10

Crown 8-1/2" - 10

Crown 8-1/2" - 10

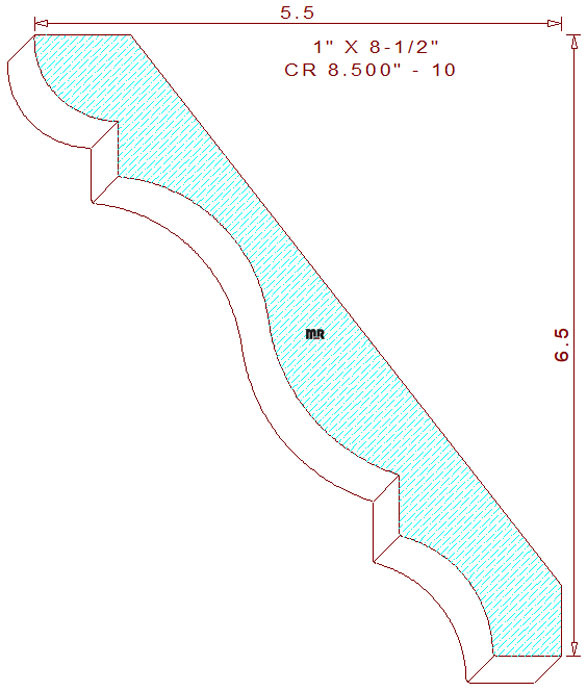

This enormous stylish 8-1/2" - 10 crown mould measures 8.500" wide by 1.000" thickness. The graceful design is comprised of a 1-63/64" radius arc tangent off of a 1-47/64" radius semicircle creating a cyma reversa in the center, attached to a 37/64" tall vertical fillet and a 57/64" radius quarter circle on top. The lower portion of the design consists of a 41/64" tall fillet attached to a 1-9/32" radius cove with a 23/32" horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back cuts set the installed height at 6-1/2" tall with a projection of 5-1/2" wide. We have a small cluster of matching patterns at various size widths, heights, and projections for your review and consideration, crown 2.000" -9, crown 2.500" - 16, crown 3.000" - 5, crown 4.000" - 37, crown 5.500" - 33, and crown 7.000" - 7.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.794
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.455
Top Cutter Head
Width: 8.500
Depth of Cut: 0.656
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$161.75
$542.50
Not Needed
Total:
$875.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$171.25
$579.50
Not Needed
Total:
$931.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$180.75
$616.50
Not Needed
Total:
$987.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
