Crown 5-1/2" - 33

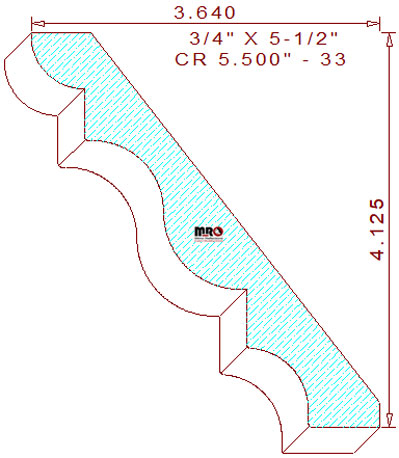

This elegant 5-1/2" - 33 supporting crown mould comprises a two tangent radius cyma recta in the center. It's attached to a 35/64" tall vertical line segment with a 9/16" radius quarter circle on the top left corner. The lower portion consists of a 5/8" vertical segment joined to a 41/64" cove with a 3/4" wide segment on the design's bottom right corner. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back angles keep the face side of the profile parallel to the wall and ceiling when installed, in addition to locking in the height at 4-1/8" tall with a 3-41/64" projection across the top. The pattern measures 5.500" in width by .750" in thickness. The recommended rough wood rip-size milling sprung (laying horizontally flat) using four-quarter lumber is 5-3/4" wide. We offer a small family of this pattern at various size widths, heights, and projections for your review and consideration, 2" wide, 2-1/2" width, 3" wide, 4" wide, 5-7/16" width, 7" width, and 8-1/2" wide.

The up-to-date combined high-speed steel knives & profile template prices are listed below for quoting purposes. On most of our cove, crown, and bed mould designs, we utilize a full 2.375"/60mm cutter head for the back cut angles to allow for multiple axial adjustments on a wide range of patterns.
