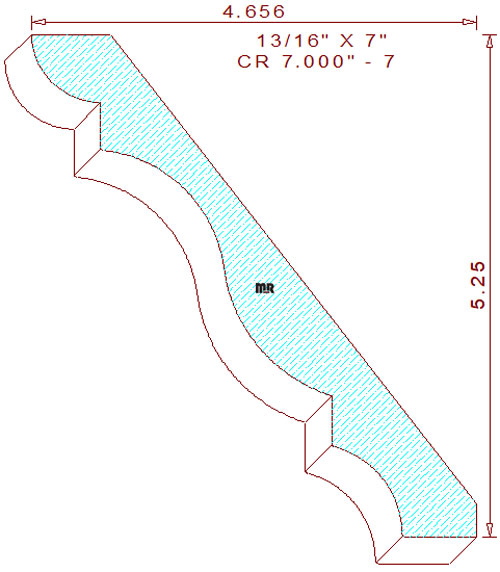

This Beautiful Crown Moulding 7" - 7 measures 7.000" wide by .812" thickness with a .508" depth of cut on the right side cutters, a .277" depth of cut on the left vertical blades, and a .688" depth of cut on the top horizontal profile knives.
The creative design is comprised of a 1-5/8" radius arc tangent off of a 1-7/16" radius semicircle creating a cyma reversa in the center, attached to a 1/2" tall vertical fillet and a 23/32" radius quarter round circle on top. The lower portion of the design consists of a 17/32" tall fillet attached to a 61/64" radius cove with a 25/32" wide horizontal fillet at the bottom of the pattern. We have a small cluster of matching patterns at various size widths, heights and projections for your review and consideration, 2" wide, 2-1/2" width, 3" wide, 4" wide, 5-1/2" width, and 8-1/2" wide.
The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back cuts set the installed height at 5-1/4" tall with a projection of 4-21/32" wide. Three high points in the detail were deliberately positioned on the same plane, our standard design practices will assure exceptional hold down conditions while milling the detail on an industrial moulder providing the pressure shoe is parallel to the bed plates.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
