Crown 8-1/2" - 11
Crown 8-1/2" - 11

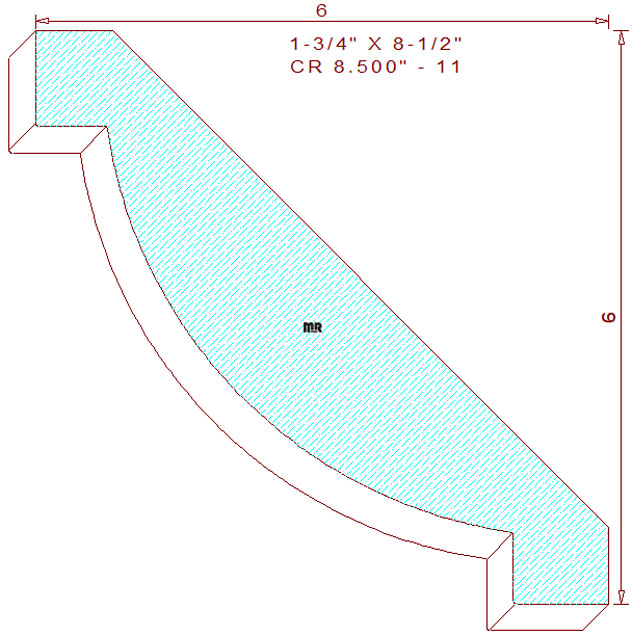

This 8-1/2" - 11 ovolo crown mould measures 8.500" wide by 1.750" thickness. The extensive bulky profile is comprised of a 5" radius convex arc in the center of the pattern, connected to a 3/4" by 1" tall and wide squared fillets on both the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 5" tall and wide. Perhaps a felt-covered pressure shoe could eliminate an unsightly burnish mark caused by the molder hold-down element. Before you begin knife grinding procedures, please read our article on profile knives cutting circle to see if you can safely mill this pattern on your machinery.
We have a large group of similar style profiles with different widths, heights and projections, here are just a few of them you may want to review and consider for your current moulding project, crown 2.000" - 14, crown 2.500" - 13, crown 3.000" - 3, crown 3.250" - 23, crown 4.250" - 51, crown 5.250" - 11, and crown 6.375" - 13.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.569
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.569
Top Cutter Head
Width: 8.500
Depth of Cut: 1.250
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$598.00
Not Needed
Total:
$888.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$635.00
Not Needed
Total:
$944.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$690.50
Not Needed
Total:
$1028.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
