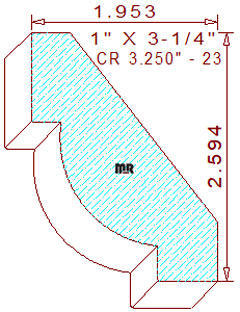

The medium sized profile is comprised of a 1-9/64" radius convex arc in the center of the design, connected to a 5/16" wide by 15/16" tall squared lines on the top, and a 3/8" tall by 41/64" wide squared fillet on the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-19/32" tall with a projection of 1-61/64" wide. We recommend a felt covered pressure shoe be used to eliminate and unsightly burnish mark that may be caused by the moulder hold down element.
Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on moulding knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
