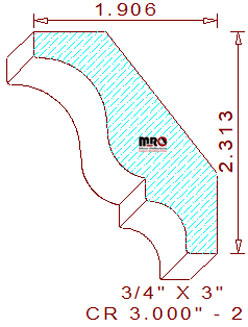

This Standard Crown Moulding 3" - 2 measures 3.000" wide by .750" thickness with a .464" depth of cut on the right back bevel cutters, a .657" depth of cut on the left side back blades, and a .305" depth of cut on the top horizontal profile knives.
The everyday colonial design consists of a cyma recta flanked by a 9/32" tall vertical fillet in the upper portion and a 1/4" tall fillet below, attached to a 25/64" radius cove and 5/16" wide horizontal fillet at the bottom of the pattern. We currently have a group of eight profiles including this one at various size widths, heights and projections, for your review and consideration, 1-1/2" wide, 2" wide, 2-1/2" wide, 4" wide, 5-1/2" wide, 7" wide, and 8-1/2" wide.
The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-5/16" tall with a projection of 1-29/32" wide. Three high points in the detail were intentionally positioned on the same level plane, this specialized design feature will assure excellent hold down conditions while milling the detail on an industrial moulder providing the pressure shoe is calibrated.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
