Crown Moulding 8-1/2" - 5

Crown Moulding 8-1/2" - 5

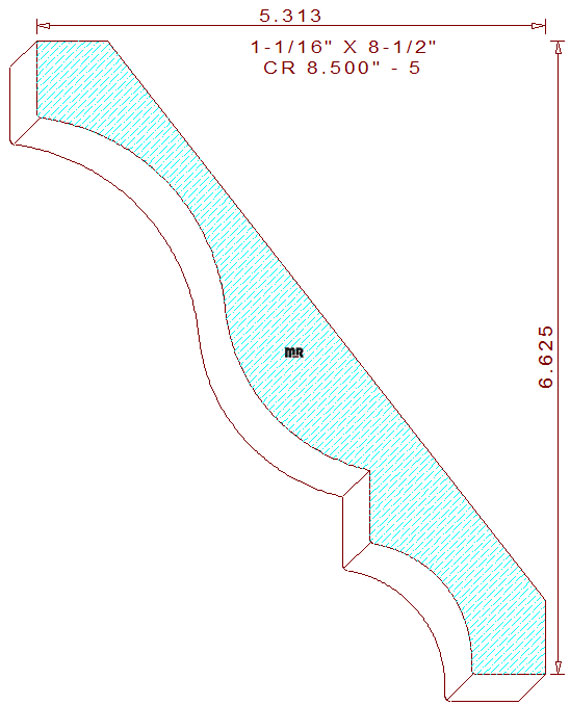

This large colonial crown moulding 8-1/2" - 5 measures 8.500" wide by 1.062" thickness, allowing the detail to be milled sprung (laying horizontally flat) out of five quarter lumber. The distinctive profile is comprised of a 13/16" tall vertical line segment on top, connected to a two tangent radius cyma recta with a 25/32" vertical line in the center, joined to a 1-7/32" radius cove and an 25/32" wide horizontal fillet on the bottom of the pattern. We have a group of eight matching profiles at various size widths, heights and projections for your review and consideration, crown molding 1.500" - 4, crown 2.000" - 2, crown 2.500" - 4, crown 3.000" - 2, crown 4.000", crown 5.500" - 2 and crown 7.000" - 31.

The spring angles are fixed at thirty-eight and fifty-two degrees, these dedicated back bevels set the installed height at 6-5/8" tall, with a projection of 5-5/16" wide. Three high points in the detail are intentionally positioned on the same level plane, our professional design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is properly set parallel to the bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.500" / Depth of Cut = .687" (top knives.)

Thickness = 1.062" / Depth of Cut = .458" (right blades) & .614" (left cutters.)
